Section 2 - Iterators

7B.2.1 Iterators

Think about the various ways in which we looped through arrays, and compare those loops to moving through linked lists.  There was a common idea in both: initialize, test, iterate, but the actual syntax was much trickier in the lists.  We will see that besides vectors, there are other containers in the STL, notably lists.  Another advantage of using STL vectors and lists is that there is a common technique for running through them, a technique whose syntax is identical in both cases.  This involves the use of something called iterators.

Iterators are defined alongside vectors (or other containers in STL) .  They belong to whatever container class they will access, so in the case of a vector, we will have to use a vector-flavored iterator.  We define it simply, like so:

vector<double>::iterator iter;

This creates an iterator object, iter, which can be used on a vector of doubles.  Iterators make use of the begin() and end() instance methods of the vector class, because those methods return iterators.

• begin() returns an iterator to the first item in the vector
• end() returns an iterator to a point one element beyond the last item in the vector.  You will see why it is useful to have end() work this way.

Iterators are like pointers.  They point to an item in the vector.  They must be dereferenced as pointers, using the * notation, and they make use of the overloaded increment operator, ++, to move them to the next item in the vector. (Lists use the same syntax).

Here is a version of our recent program that uses iterators.

#include <iostream>
#include <vector>

using namespace std;

int main()
{
  vector<double> myDoubles;
  vector<double>::iterator iter;

  for ( int k = 0; k < 100 ; k++ )
    myDoubles.push_back(-.01 * k);
  myDoubles.push_back(55.99);

  for( iter = myDoubles.begin(); iter != myDoubles.end(); iter++)
    cout << *iter << " ";
  cout << endl;

  return 0;
}

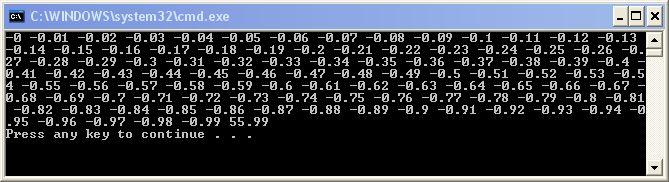

Run:

7B.2.2 Iterator Details

In reality, the iterator for each container is defined to be a nested class within the container template class.  If you define one class, Inner, within another class, Outer, then you can instantiate an Inner object from the client using:

Outer::Inner innerObject;

This is something we don't usually do.  Still, that's what's happening here.  If you define a vector of Cards, then you will have a class called vector<Card>.  In order to get an iterator for that class, you must instantiate an object of the nested class vector<Card>::iterator.  That's where the funny notation comes from.  It's not necessary that you understand this level of detail, but C++ programmers do know and use this information, regularly.
